Jetshine Machine Technology Co.,Ltd
Automatic-spray-gluing-machine

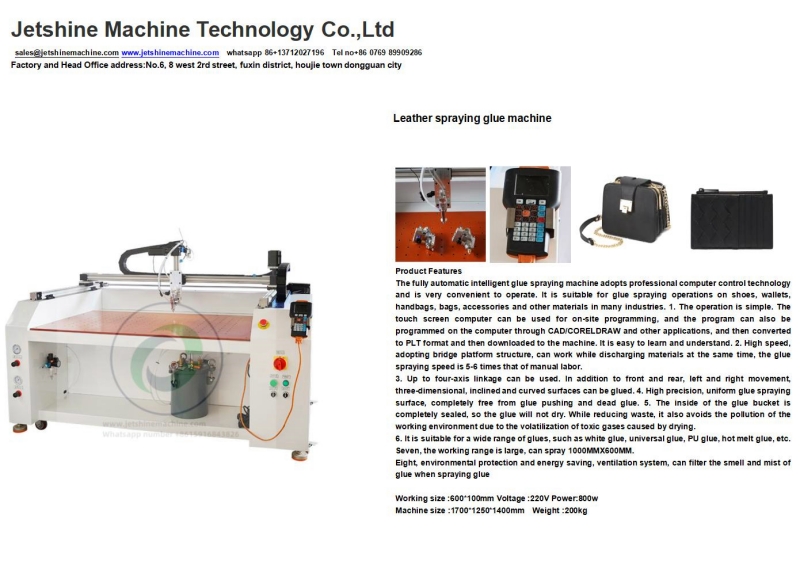

The fully automatic intelligent glue spraying machine adopts professional computer control technology and is very convenient to operate. It is suitable for glue spraying operations on shoes, wallets, handbags, bags, accessories and other materials in many industries. 1. The operation is simple. The touch screen computer can be used for on-site programming, and the program can also be programmed on the computer through CAD/CORELDRAW and other applications, and then converted to PLT format and then downloaded to the machine. It is easy to learn and understand. 2. High speed, adopting bridge platform structure, can work while discharging materials at the same time, the glue spraying speed is 5-6 times that of manual labor.
3. Up to four-axis linkage can be used. In addition to front and rear, left and right movement, three-dimensional, inclined and curved surfaces can be glued. 4. High precision, uniform glue spraying surface, completely free from glue pushing and dead glue. 5. The inside of the glue bucket is completely sealed, so the glue will not dry. While reducing waste, it also avoids the pollution of the working environment due to the volatilization of toxic gases caused by drying.
6. It is suitable for a wide range of glues, such as white glue, universal glue, PU glue, hot melt glue, etc.
Seven, the working range is large, can spray 1000MMX600MM.
Eight, environmental protection and energy saving, ventilation system, can filter the smell and mist of glue when spraying glue
Working size :600*100mm Voltage :220V Power:800w
Machine size :1700*1250*1400mm Weight :200kg
