Jetshine Machine Technology Co.,Ltd

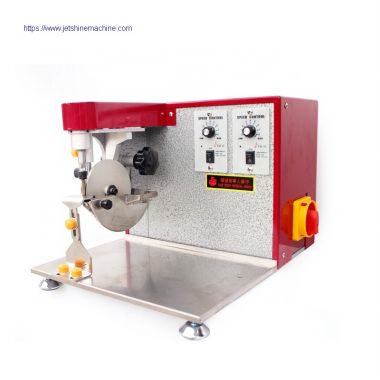

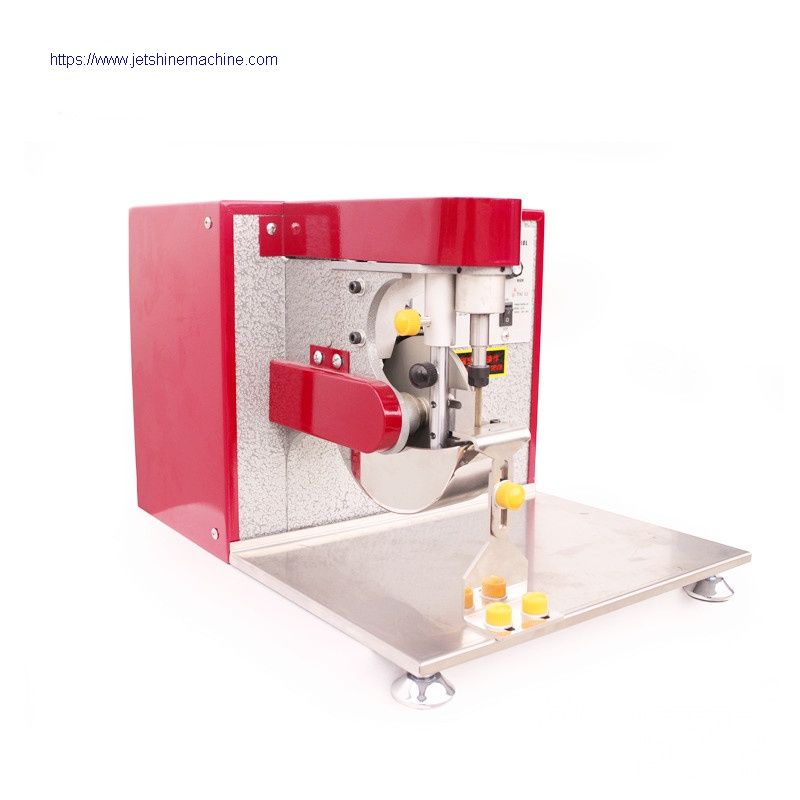

shoe upper curve inking machine ,handbag edge inking paiting machine
Production details and video show
Characteristics: The machine is suitable for the belt factory,handbag factory,all kinds of men and women belt head,leather
accessories,irregular leather edge oil,with double speed regulation device,oil and speed are free to allocate. Cooperate with device can realize semi-automatic operation.
accessories,irregular leather edge oil,with double speed regulation device,oil and speed are free to allocate. Cooperate with device can realize semi-automatic operation.
Instructions:
1.Check whether the machine voltage (220V) are in conformity with the power supply voltage.
2.Open the power,adjust the flywheel run to adjust to fit the machine speed.
3.Pour the side oil into the three-quarter position of the oil side box. Please do not overfill.
4.According to the need to twist adjusting nut oil to fuel control to the quantity of oil required for the product.
5.Clean the machine when open the power supply with film first scraped off on the side of the tanker oil,and then turn off the machine power supply,remove the oil box fixed nut,remove the oil box rinse immediately with water.
Voltage :220V
Power:2kw
Dimensions: 350 *420*300MM
N.g"23KG
